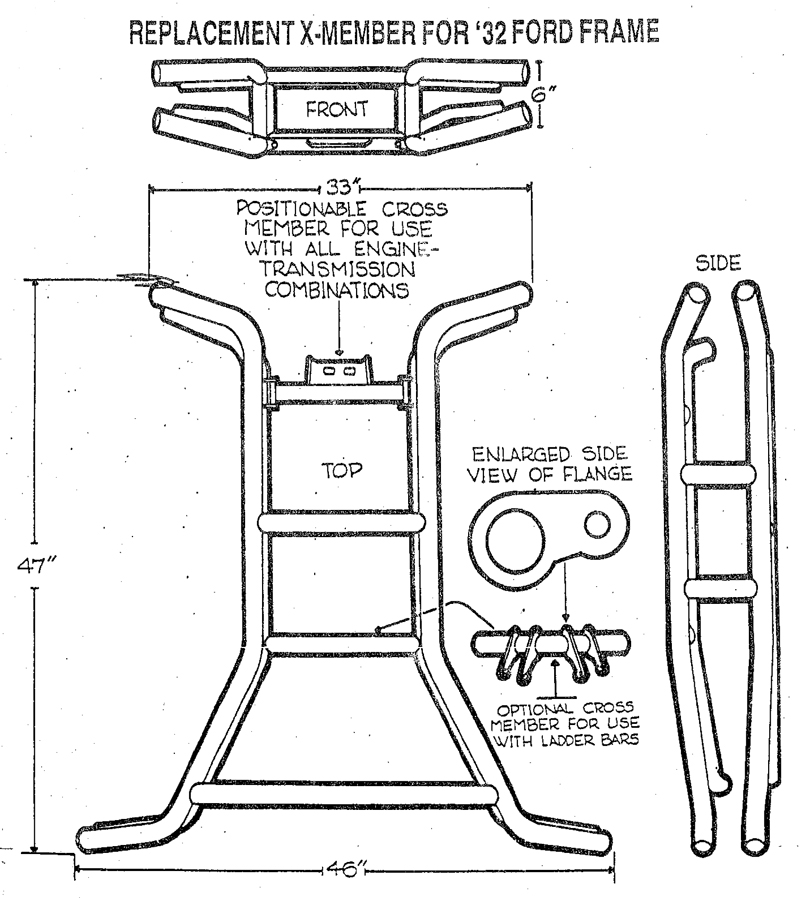

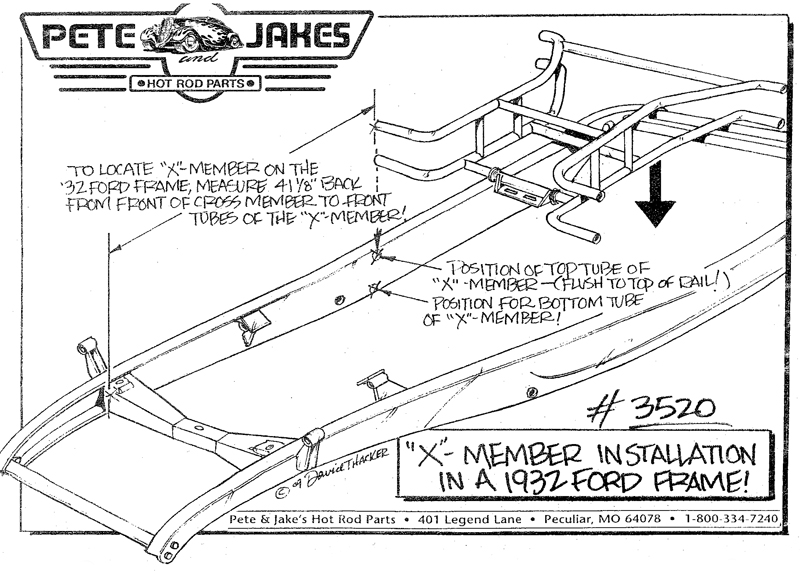

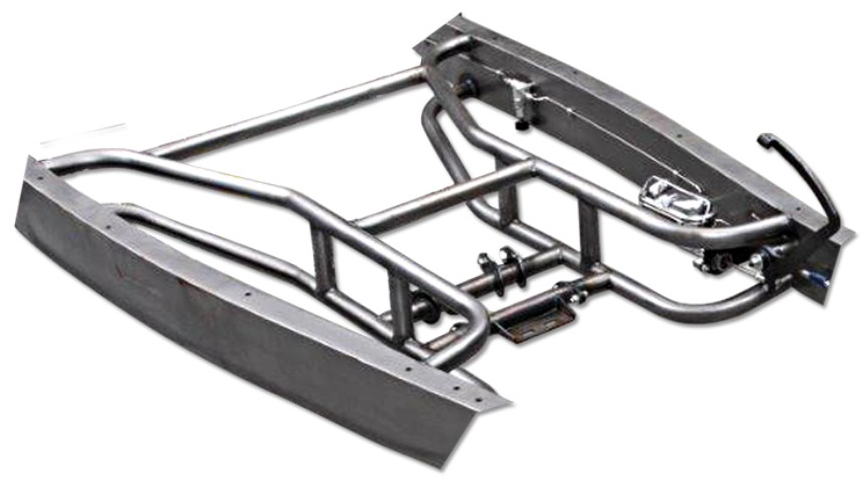

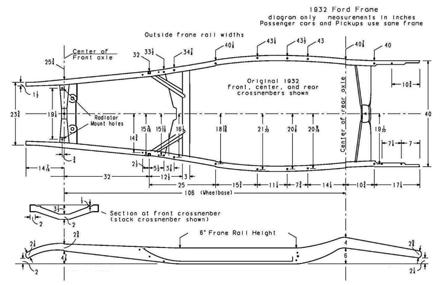

We found that Pete and Jakes 3011-A 3520 "X" Member makes a solid foundation for building you 32 Roadster or Coup. It is engineered, when welded into your Boxed in 32 Frame, to give structural integrity and superior strength. It is constructed of 1 1/2" heavy walled tubular steel. It is designed to accept many motor and transmissions combinations. Instructions are provided for exact placement. See drawings above.

Tubular X Member

3520

$490.00

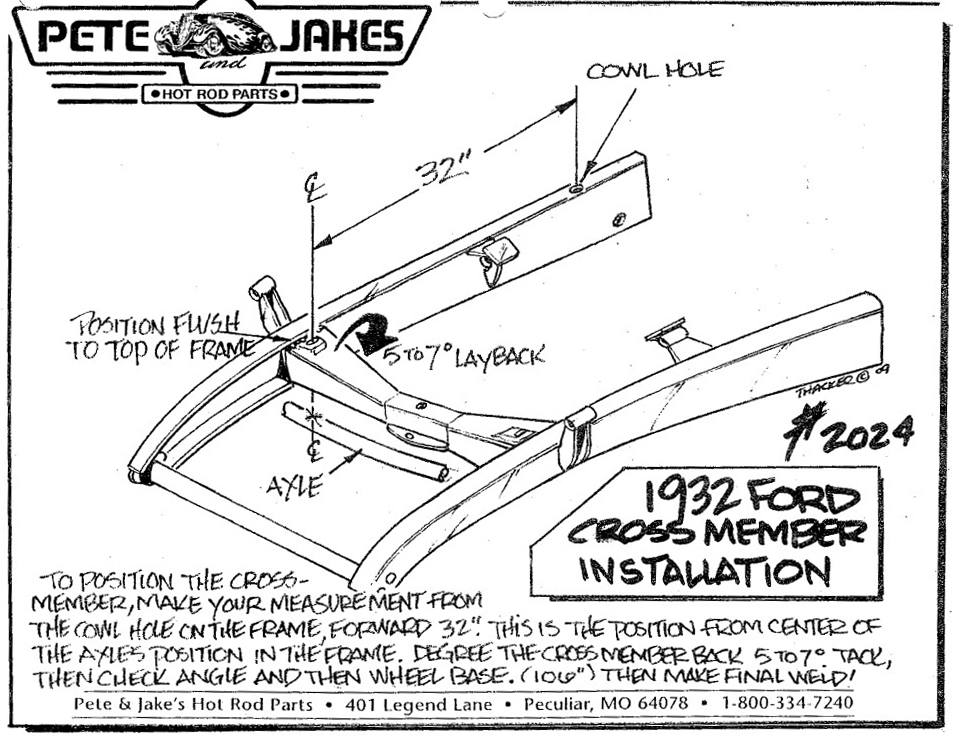

Used in a boxed 1932 Ford frame. Allows 5 degrees of positive caster. Lowers 1932 Ford frame 1″

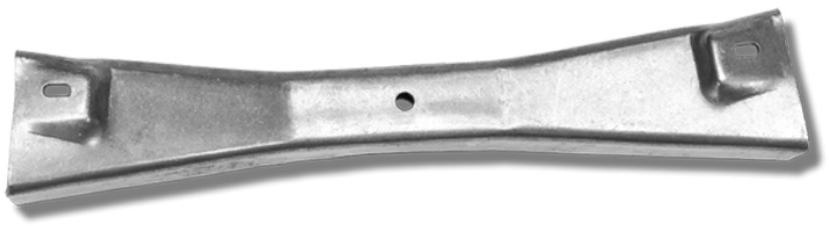

32 Ford Consumable

2024

$91.00

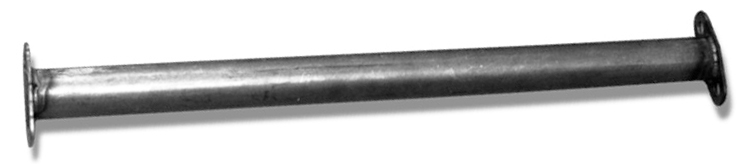

32 Ford Front Spreader Bar - Steel

8094

$54.00

32 Ford Front Spreader Bar - Stainless Steel

8094-S

$95.00

32 Ford Rear Spreader Bar - Steel

8095

$61.00

32 Ford Rear Spreader Bar - Stainless Steel

8095-S

$159.00

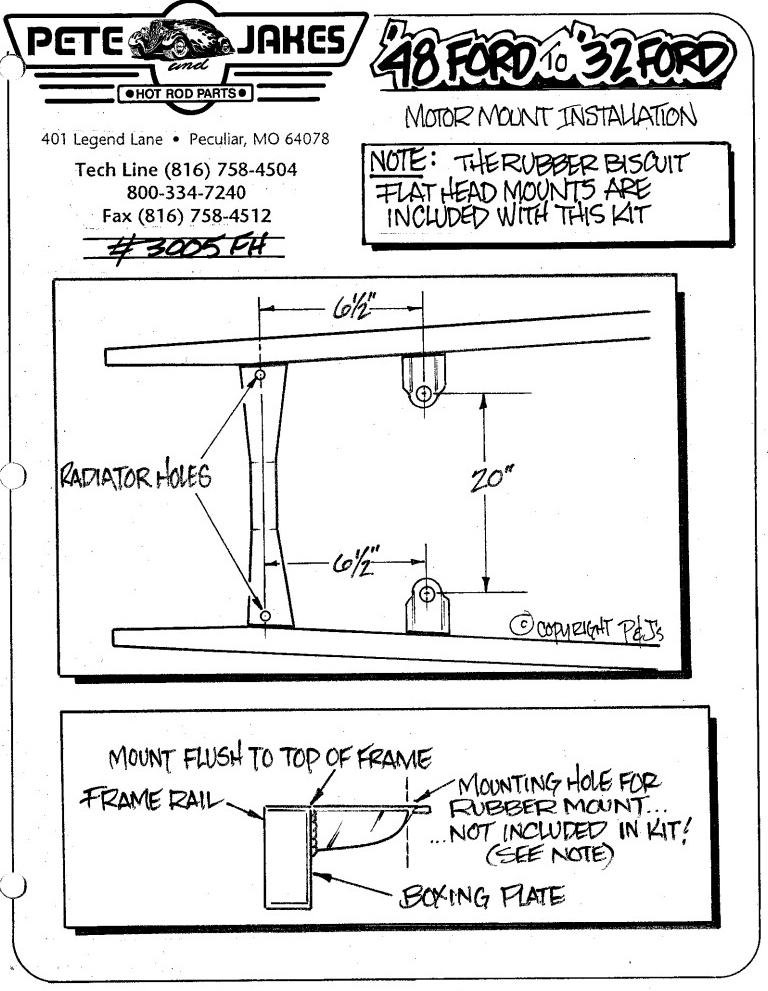

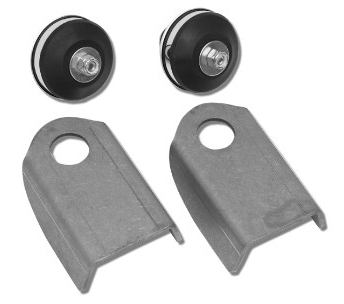

Flat Head Motor Mounts
For a Boxed 32 Ford Frame

Flat Head Motor Mounts

3005-FH

$87.50

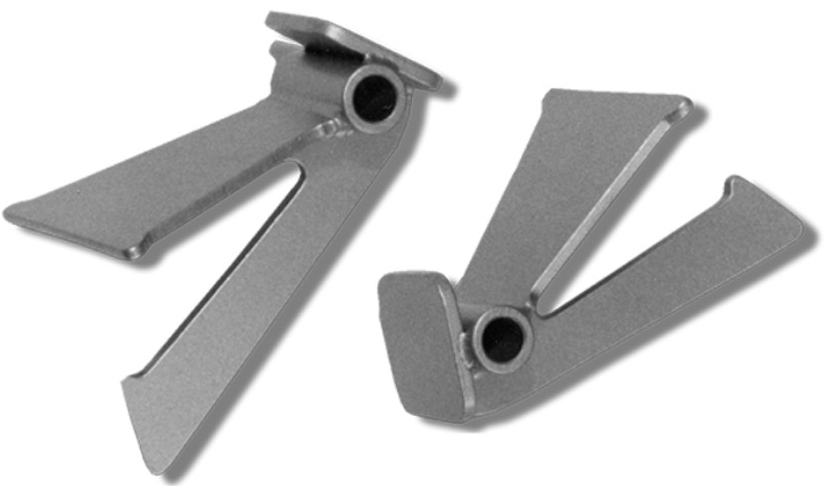

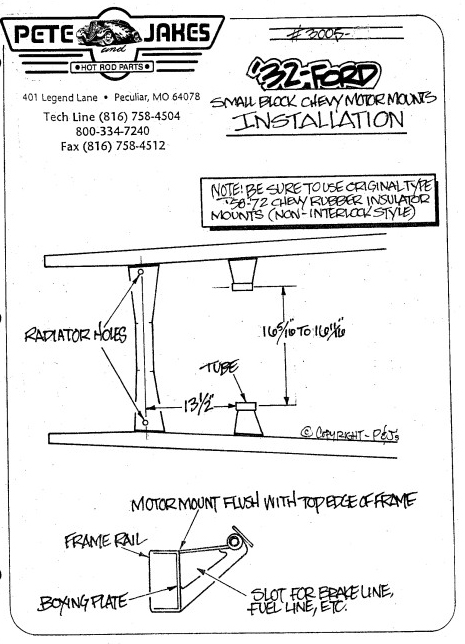

Small Block Chevy Mounts using factory type rubber mounts. Fits boxed 1932 Ford frame rails.

Small Block Chevy Mounts

3005

$87.90

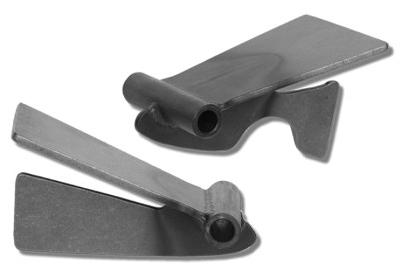

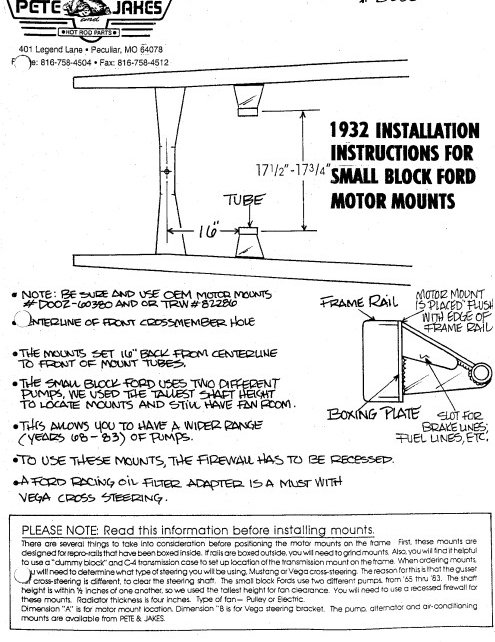

Mounts a Small Block - Ford 302-351W - into a 1932 Ford Boxed Frame

Small Block Ford Mounts

3006

$87.50

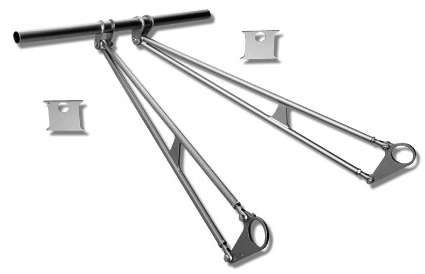

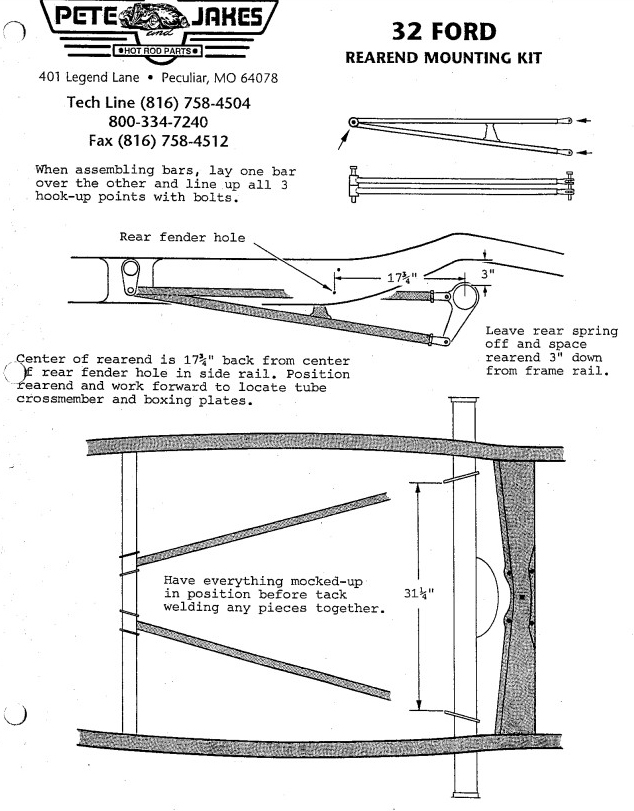

Mounts rear end into 1932 Fords that have flat style floor pan (dropped pan under seat of coupe, roadster, etc., must be replaced with flat panel like flooring of 2-door sedan). Urethane bushings at front center pivot. Adjustable clevises at rear. Ultimate in strength and traction! Small square steel plates are used with unboxed frames only. Chrome Kits are available.

1932 Ford Rear Ladder Bar Kit
3" Diameter Housing

3011

$500.00

1932 Ford Rear Ladder Bar Kit
2 13/16 " Diameter Housing

3011-A

$500.00

1928-31 Ladder Bar Kit
For 37 to 48 Ford Tapered Housing

3011-B

$500.00

PN - 3511

PN - 3509

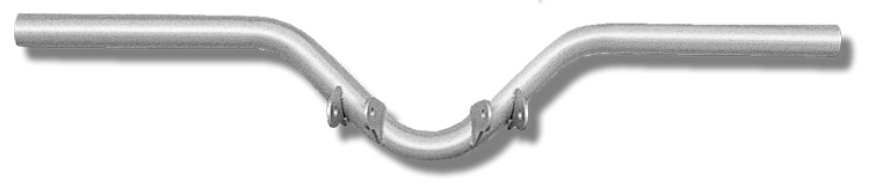

Ladder Crosscurrents are long enough to fit the width of any car. Constructed from 1 3/4" steel, the 3511 is 42" and 3509 is 39". The welded on angel plates accept bars coming into center. The Straight tube goes above the driveshaft and bars mount below. The dropped crossbeams goes under the drivshaft and bars mount behind.

Dropped Cross member

3511

$90.25

Straight Cross member

3509

$90.25

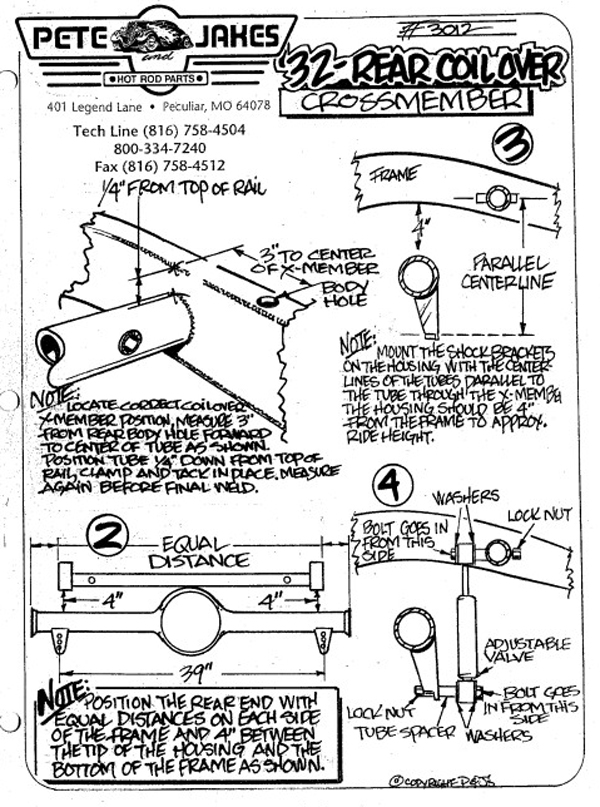

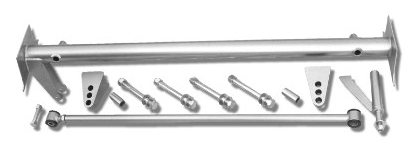

Rear Coil Suspension Kit prevents lateral movement of rear end, Brackets bolt onto rear end center section, the adjustable bar has urethane bushings. The tube cross member replaces stock cross member using stock rivet holes in frame for location and easy installation. The lower shock mounts have 3 vertical positions to adjust ride height. We suggest using the Viper alloy adjustable valve shocks with urethane bushings.

1932 Rear Coil Suspension Kit

3013

$432.00

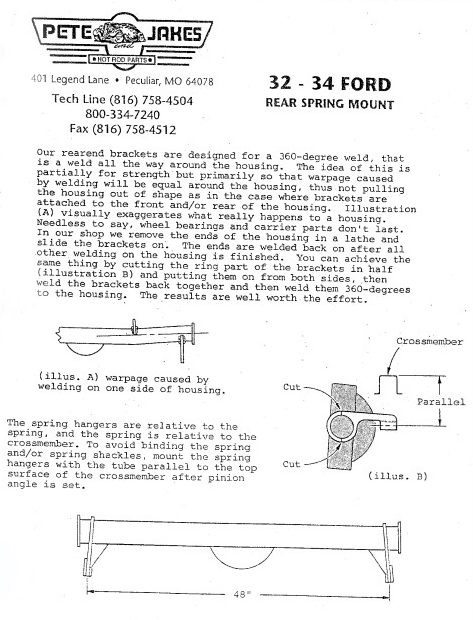

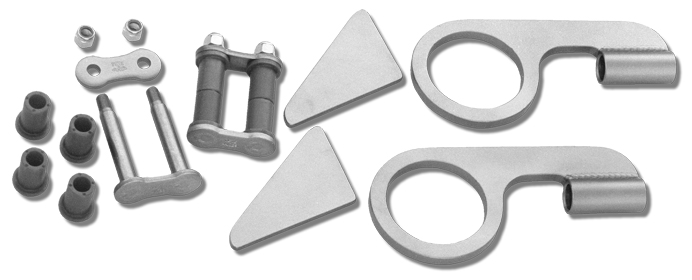

Mounts 1932-34 curved style rear spring to rear end.
Includes shackles with urethane bushings.

Ford Rear Spring Mounting Kit
For 3" Dia. Mounting

4019

$111.00

Ford Rear Spring Mounting Kit
For 2 13/16" Dia. Mounting

4019-A

$111.00

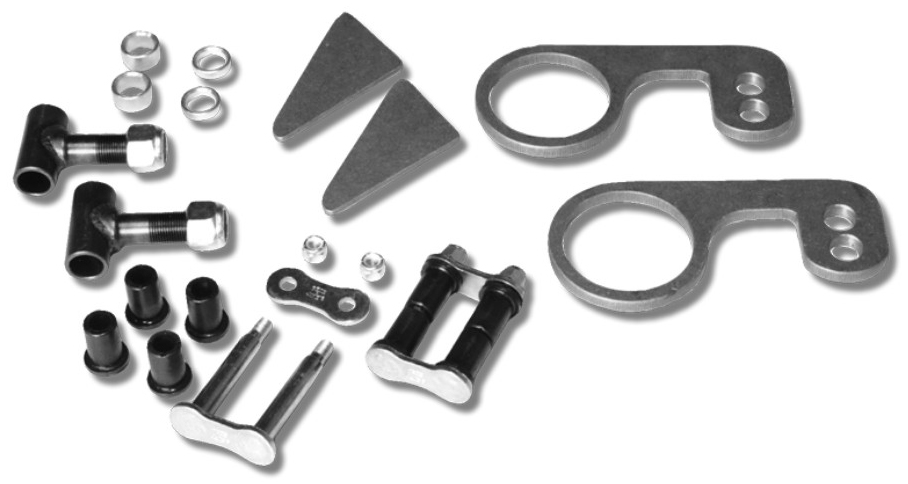

Adjustable Rear Spring Mounting Kit
For 3" Dia. Mounting

4019-AD

$169.00

Adjustable Rear Spring Mounting Kit
For 2 13/16" Dia. Mounting

4019-AAD

$169.00
