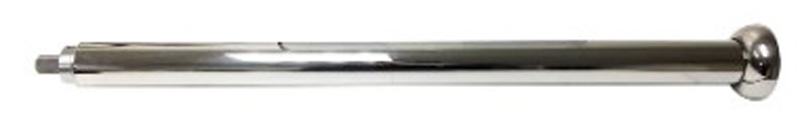

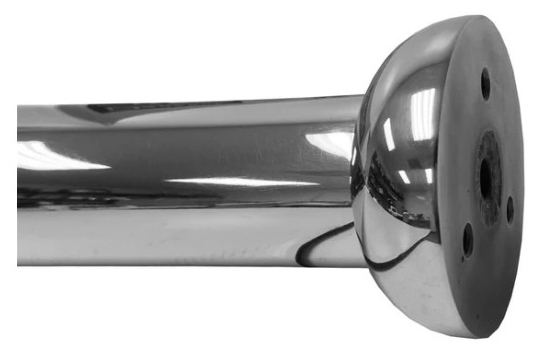

HOT ROD COLUMN
1.75" Stainless Steel Tube

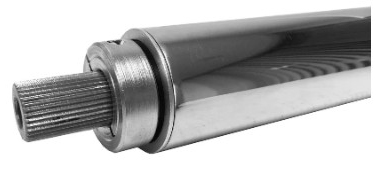

Built tough, with a sealed bearing at each end of a 1-3/4" stainless steel tube - Precision machined hub Heli-Arc welded to the shaft - Fully polished with a machined stainless steel hub - Standard 3 Bolt Fitment - Fits all universal 3 bolt style steering wheels - 1" of exposed 3/4"-36 spline - Horn Wiring Contact is approximately 7.5" from the spline/bottom of the shaft - Made in the USA.
NOTE: All Columns are made to order. Please allow time for production. We recommend you mock everything up in order to check header clearance. Colums come in 26" - 28" - 30" - 32" - 34" - Polished or Unpolished
The Hod Rod Column works with the Sprint Steering Wheel
Description
Order No.
Price
Hot Rod Stainless 1.75" Column
Please Specify Column Length and Polished or Unpolished
COLHR-26134
$449.99

end
4030112
4030112
shaft

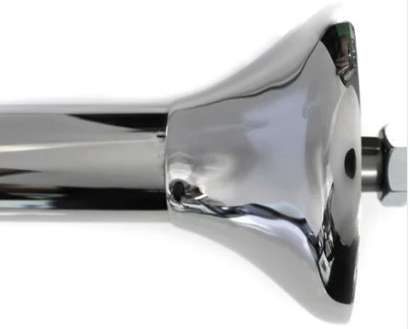

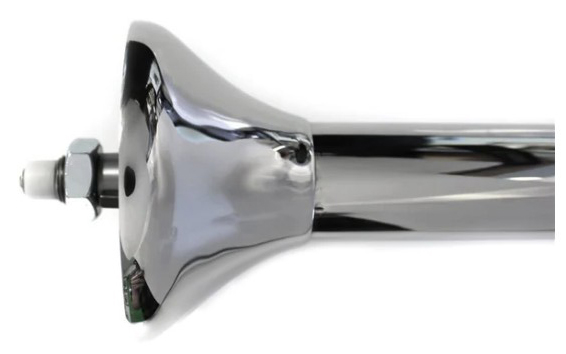

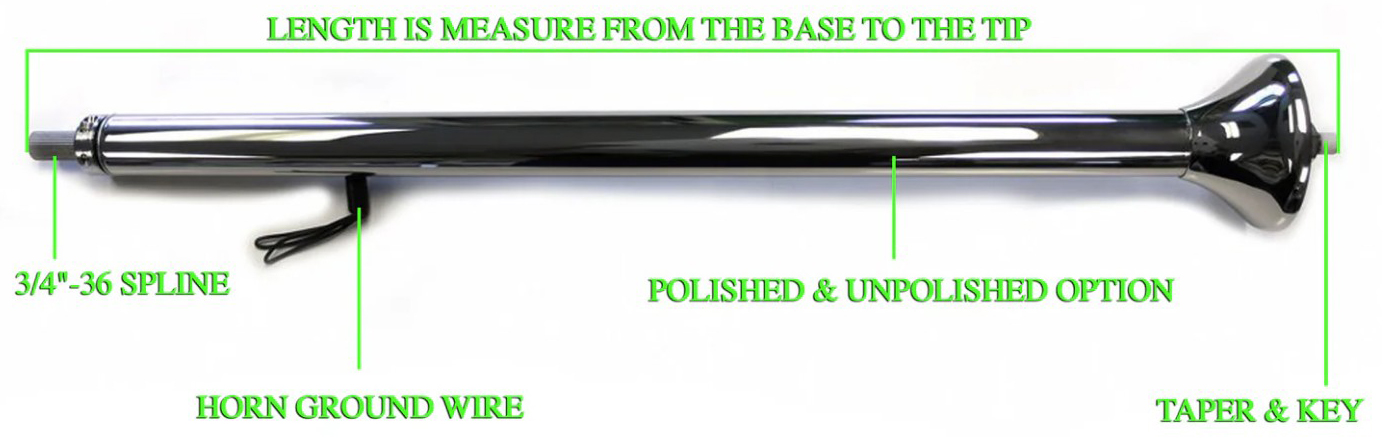

FORTY COLUMN
1.5" or 1.75" Stainless Steel Tube
Spun Stainless steel top on a high quality LimeWorks Column - Super smooth bearings at both ends of a 1.5" polished stainless steel tube - Show quality finish for miles of trouble free use - Taper and key fitment, just like a stock Forty Ford
Can use an original Ford wheel or any appropriate reproduction - 3/4"-36 spline that'll accepts most aftermarket universal joint Standard Horn Wiring Installed - Made in the USA
NOTE: All Columns are made to order. Please allow time for production. We recommend you mock everything up in order to check header clearance. Colums come in 30" or 33"- Polished or Unpolished
Description
Order No.
Price
Forty Column - 1.5"
Please Specify Column Length and Polished or Unpolished
COL4030112
$549.99
Forty Column - 1.75"
Please Specify Column Length and Polished or Unpolished
COL4030134
$549.99
drop
column drop
drop

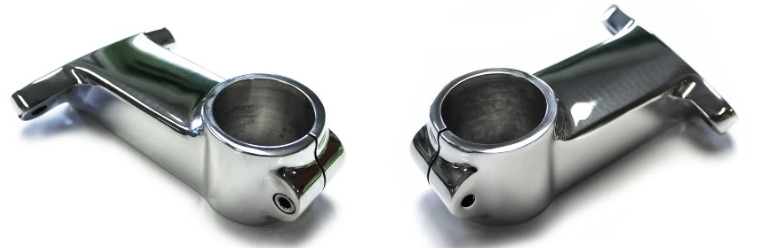

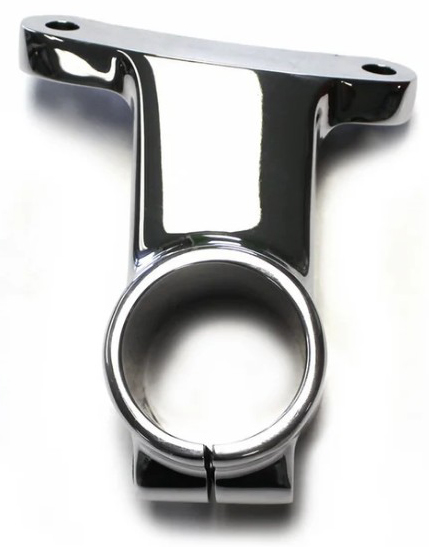

Early Style Steering Column Drop
Solid Aluminum Drop for 1932 Ford Dash
Upgrade your hot rod with the best-looking drop on the market. Our Early Style Column Drop captures the clean, curvaceous character of the original design, enhanced with a highly polished finish that stands out in any build.
Crafted from solid aluminum, this drop features a one-piece design for maximum durability and a sleek, seamless appearance. Engineered with precision angles, it mounts directly beneath the dash of your 1932 Ford, delivering a perfect fit and clean install every time.
Key Features:
  • Classic Early Style Look – Smooth curves and a polished finish offer an authentic vintage aesthetic.
  • One-Piece Solid Aluminum – Built to last with no weak points or seams.
  • 3”- 4" - 5" Drop – Measured from the mounting surface to the center of the steering column.
  • 3" Mounting Holes (Center to Center) – Two-hole design for a strong, secure installation.
  • Engineered for '32 Ford Dash – Hangs straight and true with the correct angles built in.
  • Made for a 1.5" or 1.75" Column.
Perfect for restorations, customs, or traditional builds—this column drop delivers both form and function in a single, beautifully finished piece.
Description
Order No.
Price
Early Style Steering Column Drop
Please Specify Column Size and Drop
CD-323112
$229.99

firewall sweivelmount

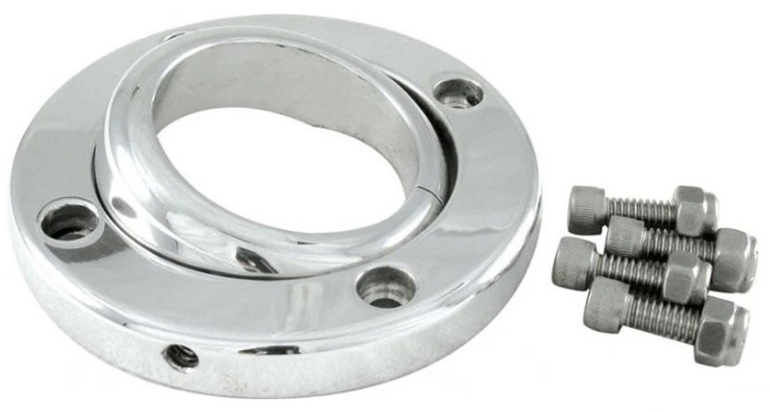

Polished Aluminum Swivel Mount
  • Easy to install
  • Solid full circle design
  • Polished Aluminum
  • Slides over the end of the steering column
  • Provides a secure way to mount the column to the floor
  • The inner collar pivots to accommodate any floor angle
  • Solid mounts are available for 1-1/2”, 1-3/4” Columns
  • 2" mount is double split for easy installation
  • All floor mounts are manufactured from solid billet
Description
Order No.
Price
Polished Pluminum Swivel Mount
Please Specify Column Size
909014
$67.99

TO ORDER - CALL 575-625-6762
